detailed description
The water filter column usually comes with a valve (a 3-door valve and automatic valve can be used) fitted with a gasket to prevent the filter material from passing through. Before we learn about the working principle of the water filter column, we will learn about the operation of 3-door valves.

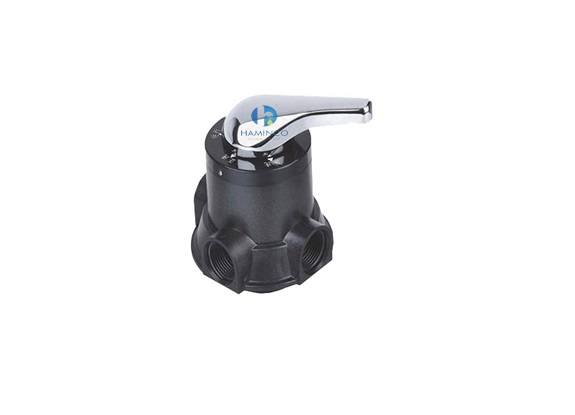

Valve for installing 3-door water filter column Figure 2 - Valve for installing 3-door water filter column
With 3-door valve, there will be 3 different operating modes corresponding to the water that will be fed into one door and out to a predetermined door. This valve structure uses a spherical conduit that can be rotated in all directions to connect the pipes to the valves.
Modeling of 3-way valve operation Figure 3 - Simulation of 3-door valve operation with ball joint
The water filter column when installing the 3-door valve will have 3 modes as shown below:
Backwash mode (backwash) is used to wash the layer of dirt, film-forming precipitates on the top.
The rinse mode is used to wash away dust and particles in the filter media.
Filter mode is the most used when filtering water containing impurities into better quality water to use.
Structure & operating principle of water filtration column Figure 4 - Principle of operation of water filter column
